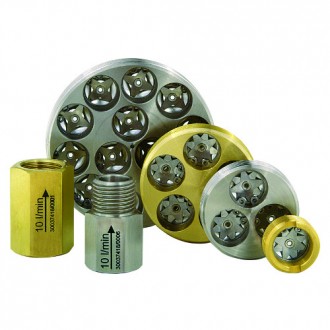

BA, BB, BC

FLOW LIMITER FOR WATER


  • high reliability

  • installation in any orientation

  • suitable for hot water

  • thread connection



Operation:

The flow limiters BA, BB and BC work on a pure mechanical base and do not require any external power source.


The cross sectional area, available to the flowing medium, will change with pressure changes in that way, that an almost constant flow stream can be maintained.

SPECIFICATIONS

For fluids (1 - 270 l/min)

Max operating pressure:
PN 10 bar

Operating Temperature:
from -20°C to 200°C

(optional 0°C)
